Working with processing steps metadata for a layer

Layers can have regular metadata and processing steps metadata attached to them.

Accessing layer metadata

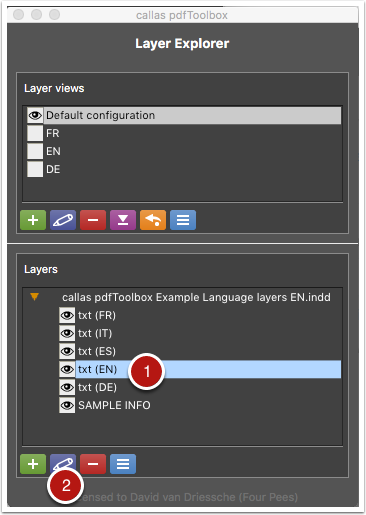

  1. Click the layer you want to see the metadata of.
  2. Click the "edit" button to "Edit layer" dialog window.

Viewing processing steps metadata

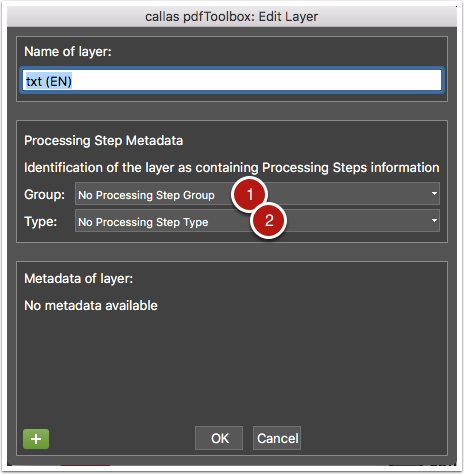

The "Edit layer" dialog window contains three sections with information about the layer:

  1. The name of the layer
  2. The processing steps information for the layer
  3. Additional metadata associated with the layer

Look at the middle section to work with the processing steps information. This section lists:

  1. The processing steps group associated with this layer, or "No Processing Steps Group" if no information is available for this layer.
  2. The processing steps type associated with this layer, or "No Processing Steps Type" if no information is available for this layer.

Changing processing steps information

You can change the processing steps group or type by using the pull down menus in the middle section of the "Edit layer" dialog window.

Deleting processing steps information

Processing steps information can be removed by using the pull down menus in the middle section of the "Edit layer" dialog window. Simply select the top value in both menus ("No Processing Steps Group / Type").
